2023 Used Excavator Volvo EC380 38Ton Original Brand Mini digger New Arrival High Quality Low Hours with CE For Sale

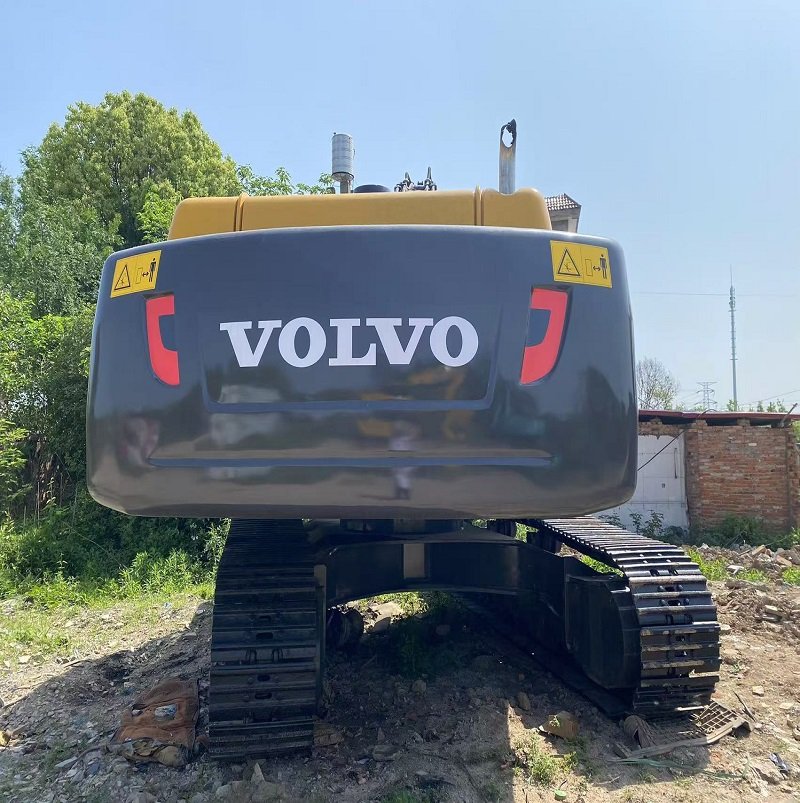

The Volvo EC380E is a robust and versatile large crawler excavator designed for demanding applications such as heavy lifting, mass excavation, and quarry operations.Built with a reinforced structure and high-quality welding, it offers superior strength and durability, making it ideal for tough job sites.

🔧 Key Specifications

• Operating Weight: 83,330 – 94,800 lbs (37,800 – 43,000 kg)

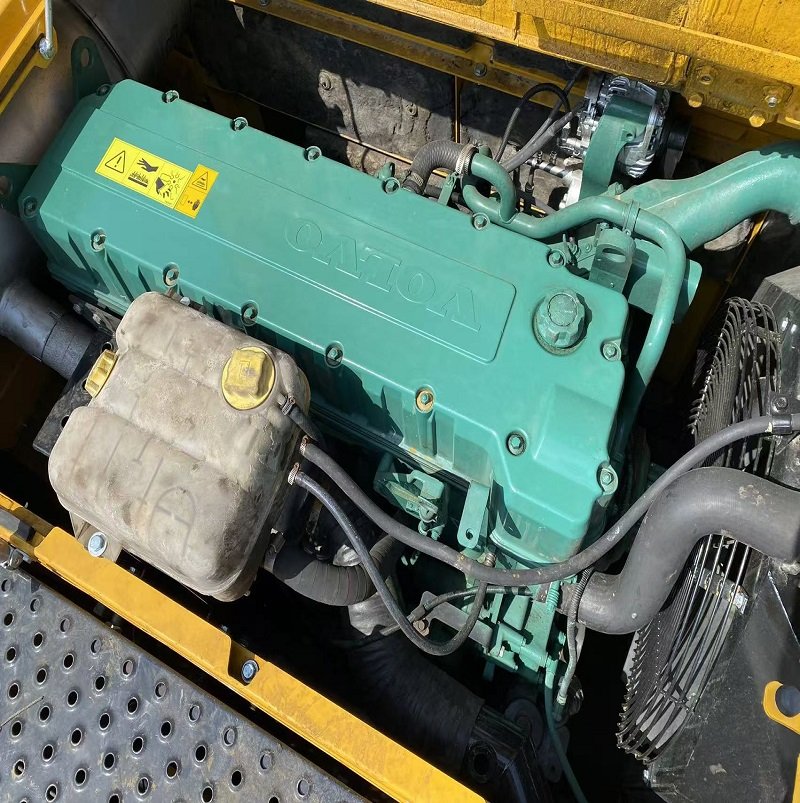

• Engine: Volvo D13J, 12.8L, 6-cylinder
• Gross Power: 303 hp (226 kW)
• Bucket Capacity: 1.09 – 3.7 yd³ (0.83 – 2.83 m³)
• Max Digging Depth: Up to 25 ft (7.6 m)
• Max Digging Reach: Up to 37 ft (11.3 m)
• Breakout Force (Normal): 44,510 lbf (198 kN)
• Tear-out Force (Normal): 44,040 lbf (196 kN)

🌱 Fuel Efficiency & Hybrid Technology

The EC380E Hybrid model incorporates Volvo’s unique hydraulic hybrid technology, utilizing the boom-down motion to charge an accumulator.The stored energy assists the engine system, resulting in up to a 12% increase in fuel efficiency and a 15% reduction in CO₂ emissions, making it an environmentally friendly choice for operations in built-up areas.

🛠️ Durability & Maintenance

• Reinforced Undercarriage: Designed for long life and high uptime in tough conditions.
• **Single Module Coolerator, charged air cooler, and hydraulic oil cooler are situated side-by-side on a single layer to maximize efficiency, reduce blockages, and aid cleaning.
• Maintenance-Friendly Design: All machine interfaces, including joysticks, keypad, and LCD monitor, are ergonomically positioned and designed for optimum control and efficiency.

🧑‍🏭 Operator Comfort & Safety

• Enhanced Visibility: Large windows with a wiper and washer provide excellent views of the worksite.
• Impact-Resistant Glass: Roof window and front one-piece glass are made from P5A, which is resistant to high impacts.
• Cab Protection: Frame-mounted Falling Objects Guard (FOG) protects the operator against falling debris.

📐 Dimensions

• Transport Length: 12.22 m
• Transport Width: 3.34 m
• Transport Height: 3.44 m
• Track Width: 600 mm
• Ground Clearance: 480 mm
• Superstructure Width: 2,990 mm
• Tailswing Radius: 3,600 mm

🔄 Versatility & Attachments

EC380E is compatible with a wide range of attachments, including demolition booms, straight booms, and various bucket types, allowing it to adapt to various applications such as demolition, lifting, and digging.The EC380E Straight Boom model, for example, replaces the traditional boom-and-stick approach with a 23-foot straight boom and purpose-built arm, providing higher reach while maintaining superior stability and lifting capabilities.
