Low Price Used Excavators Earth Moving Machinery 15 Ton Caterpillar Used Excavator Cat 315E Middle Digger
There is also a discount for face-to-face or telephone consultation!
- Fob Price: $18,800 / Unit
- Min. Order: 1 Unit
- Bucket Capacity: 0.56 m³
- Working Hours: 365
- Brand: Caterpillar
- Shipping: Sea shipping
Remarks: Complete procedures, 1 Year for machinery warranty
The machine has been tested, after-sales service and warranty are provided.
100% direct marketing
No price difference
108 tests
No accident
One year warranty
Buy at ease
Introduce
Here are the specifications for the Caterpillar 315E Crawler Excavator:

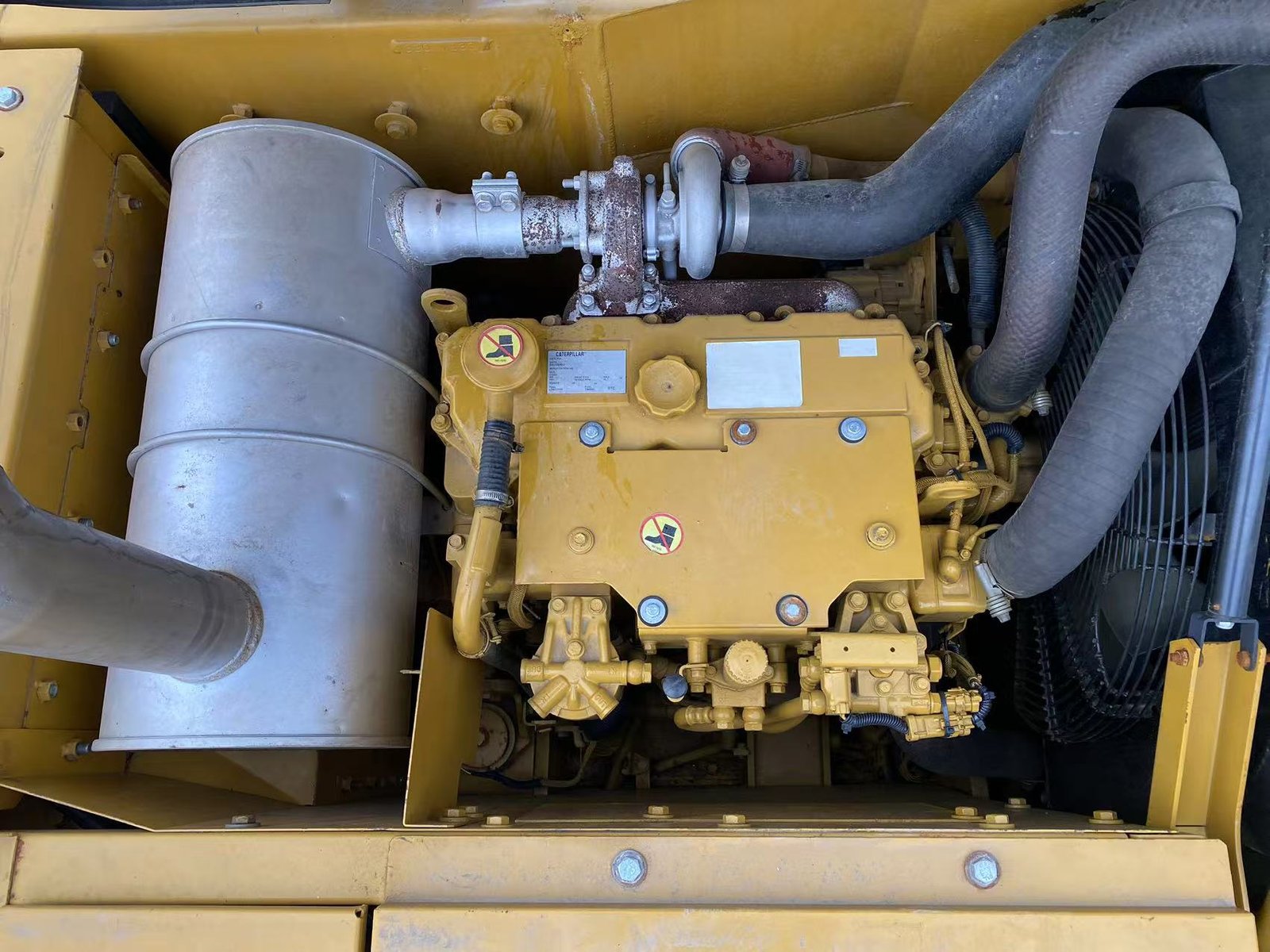

🛠️ Engine & Performance
- Engine Model: Cat® C4.4 ACERT™
- Net Power: 121 hp (90.3 kW) @ 2,000 rpm
- Gross Power: 130 hp (97 kW) @ 2,000 rpm
- Displacement: 4.4 L
- Bore x Stroke: 105 mm x 127 mm
- Emission Standards: Meets U.S. EPA Tier 4 Final/EU Stage IV
⚖️ Dimensions & Weight
- Operating Weight: 15,500 kg (34,200 lbs)
- Transport Length: 8.61 m (28.3 ft)
- Transport Width: 2.59 m (8.5 ft)
- Transport Height: 2.89 m (9.5 ft)
- Track Length: 3.8 m (12.5 ft)
- Track Width: 600 mm (23.6 in)
- Ground Clearance: 390 mm (15.4 in)
🏗️ Digging & Lifting Capacities
- Maximum Digging Depth: 6.65 m (21.8 ft)
- Maximum Reach at Ground Level: 9.9 m (32.5 ft)
- Maximum Dump Height: 3.8 m (12.5 ft)
- Maximum Blade Depth: 0.6 m (2.0 ft)
- Tear-Out Force: 98 kN (22,000 lbf)
- Stick Force: 66 kN (14,800 lbf)

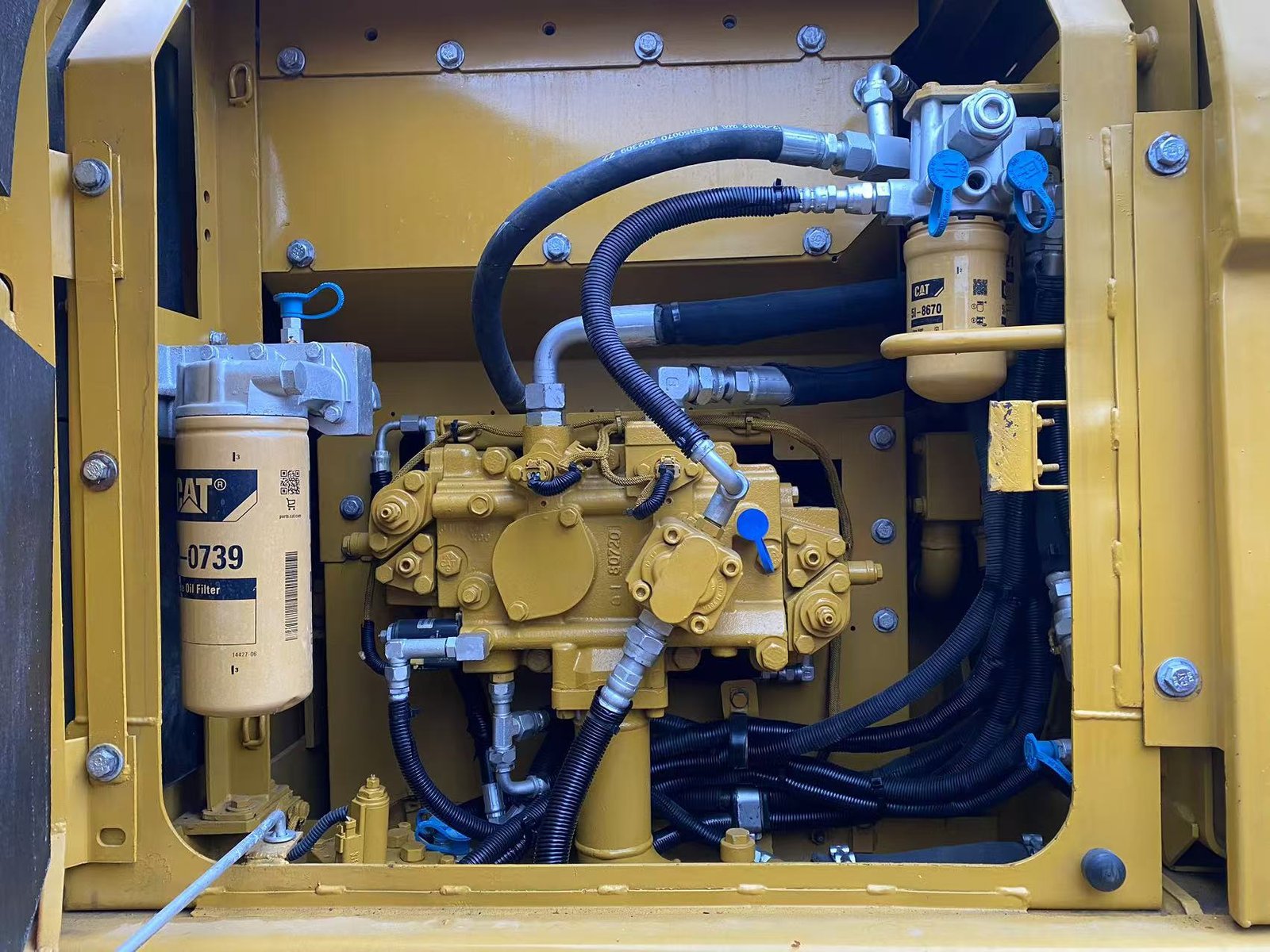

🔧 Hydraulic System
- Main System Pressure: 34,000 kPa (4,930 psi)
- Hydraulic Pump Flow: 206 L/min (54.4 gal/min)
- Auxiliary Hydraulic Lines: Standard equipment
- Optional Equipment: Hydraulic hammer, shears, grapples, etc.

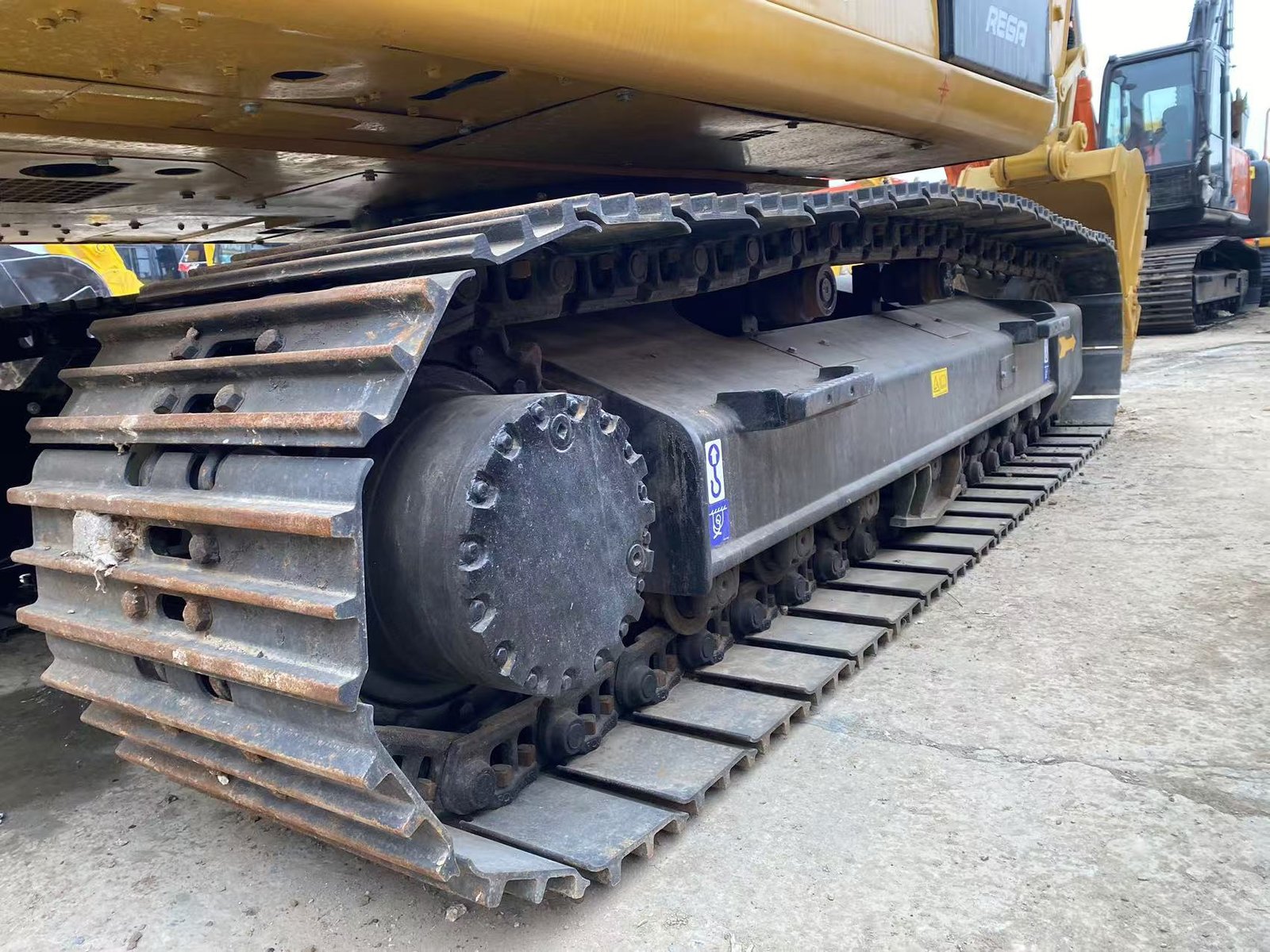

🚧 Undercarriage & Travel
- Travel Speed – High: 5.5 km/h (3.4 mph)
- Travel Speed – Low: 3.0 km/h (1.9 mph)
- Maximum Traction Force – High Speed: 97.3 kN (21,900 lbf)
- Maximum Traction Force – Low Speed: 128.5 kN (28,900 lbf)
- Gradeability: 30°
- Ground Pressure: 42.7 kPa (6.2 psi)
🛢️ Service Refill Capacities
- Fuel Tank: 235 L (62.1 gal)
- Cooling System: 22.4 L (5.9 gal)
- Engine Oil: 18.1 L (4.8 gal)
- Hydraulic Tank: 140 L (37.0 gal)
🧰 Optional Features
- Auxiliary Hydraulic Lines: For various attachments
- Hydraulic Quick Coupler: For fast attachment changes
- Blade: Optional for leveling work
- Heavy-Duty Undercarriage: For demanding environments
The Caterpillar 315E is designed to deliver power, performance, and versatility for heavy construction and earthmoving tasks. Let me know if you’d like more details!
